09th Launch (03.16.2015)

posted May 28, 2015, 9:46 AM by Manuel Roca   [ updated Jun 3, 2015, 1:23 PM]

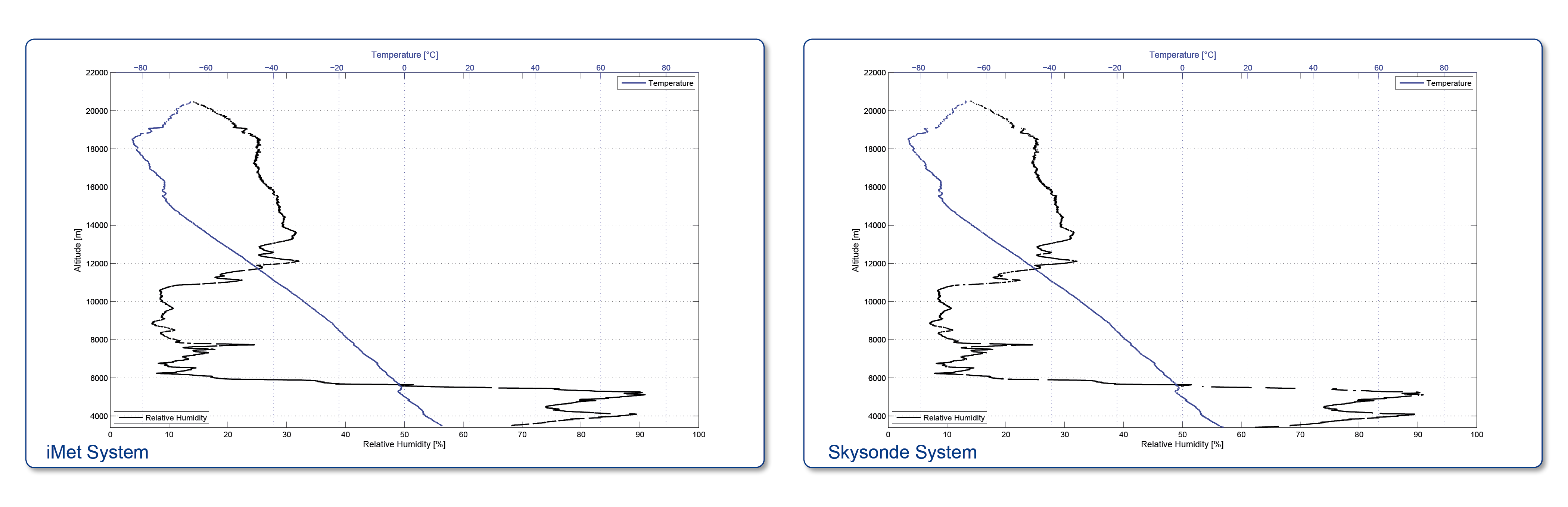

Relative Humidity & Temperature

In this case the RH profile shows the presence of high amount low clouds, they also can be observed in the photo gallery.
TRH_9th_launch
(Click on the figures to enlarge)

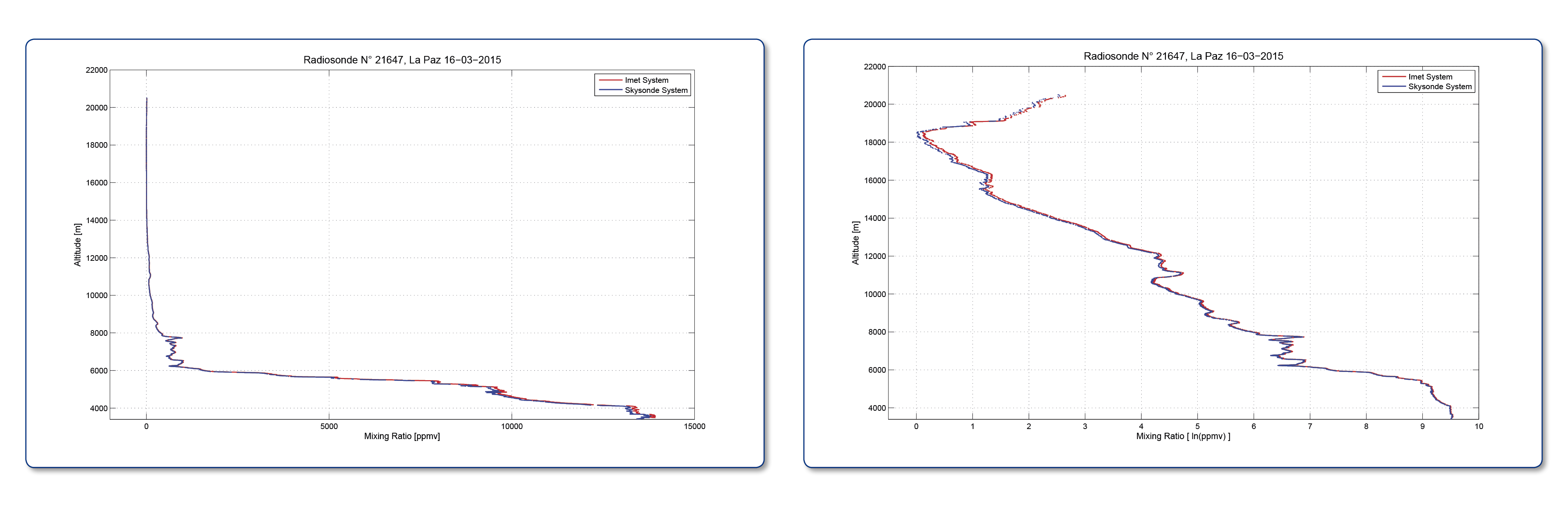

Water Vapor

However, the mixing ratio reveals a little amount of high clouds .
Xppmv_9th_launch
(Click on the figures to enlarge)

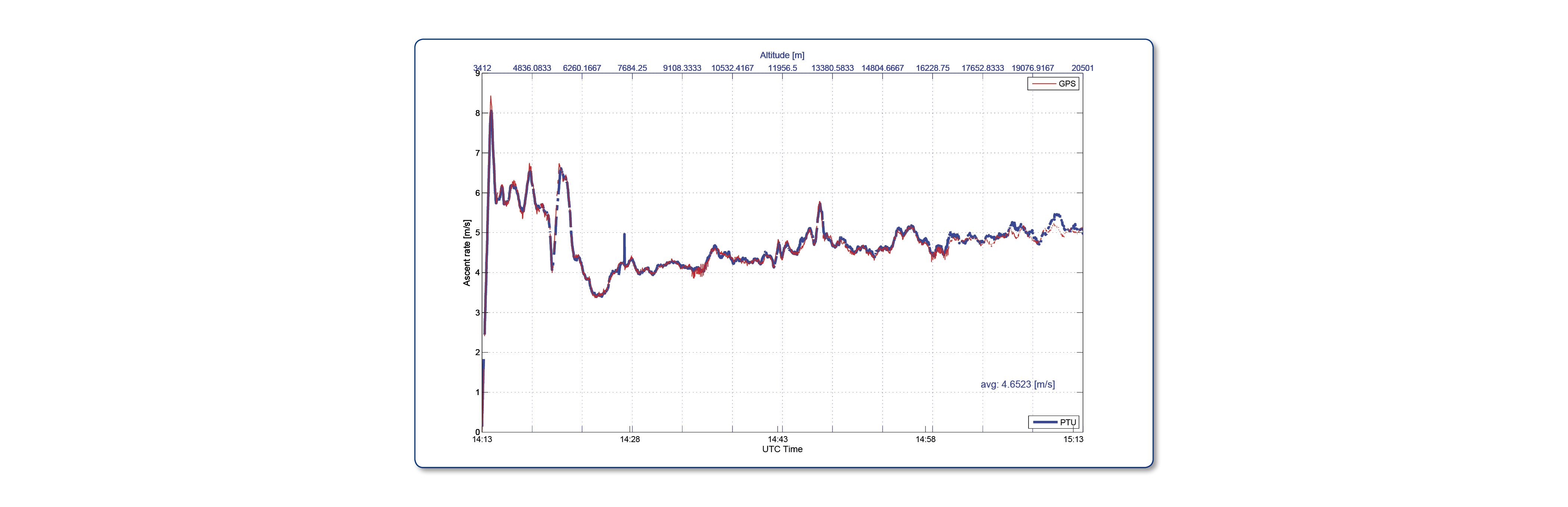

Ascent rate

The average ascent rate was 4.6 m/s, it is an acceptable value. The wind was relatively quiet, because there is no evidence of many wind bursts .
Ascent_rate_9th_launch
(Click on the figure to enlarge)

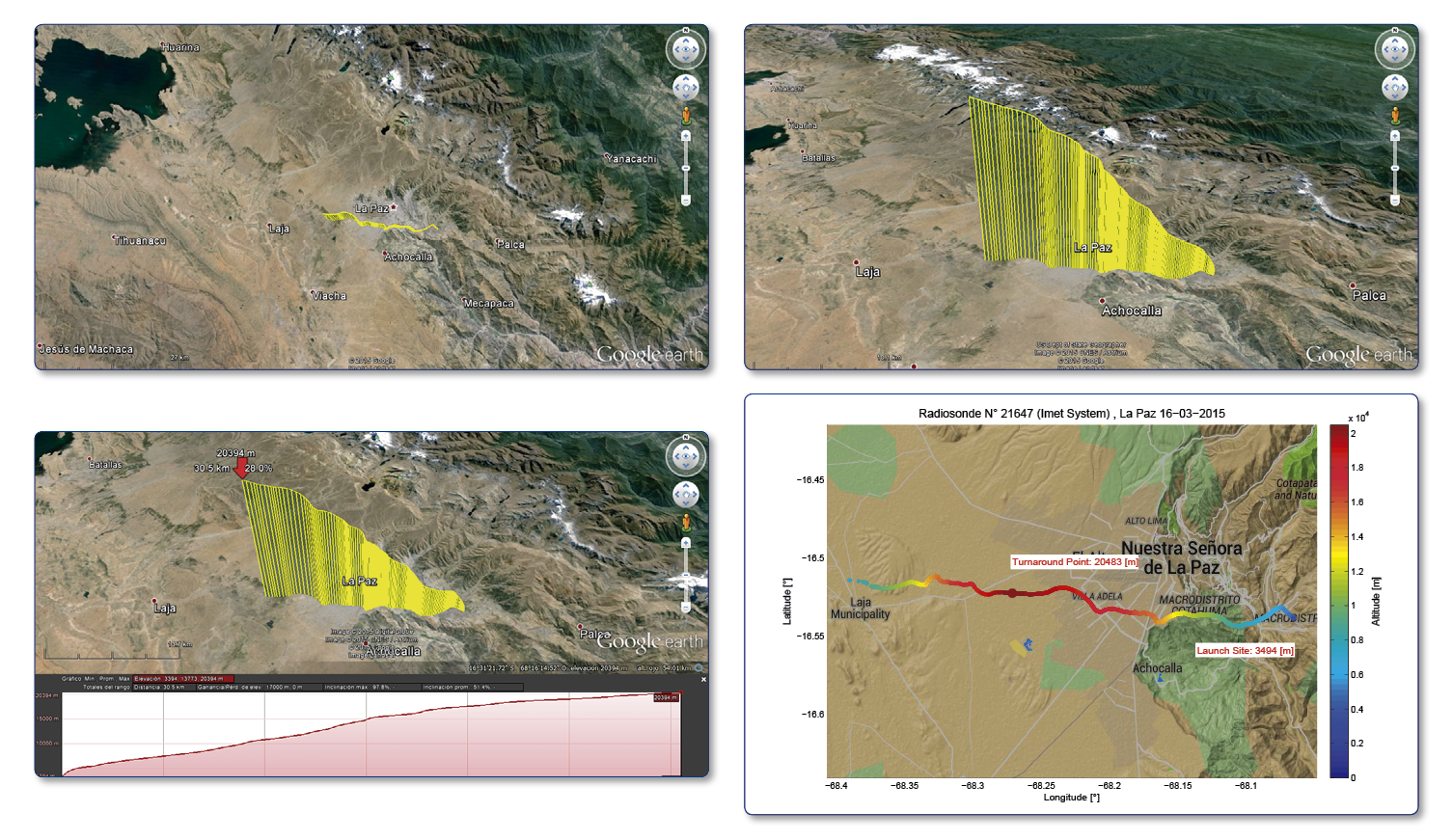

Balloon trajectory

The general behavior of the balloon was westwards. However, it was not displaced far away regarding to past launches. Also, in this case the balloon reached just 20 km.
Trajectory_9th_launch
(Click on the figures to enlarge)

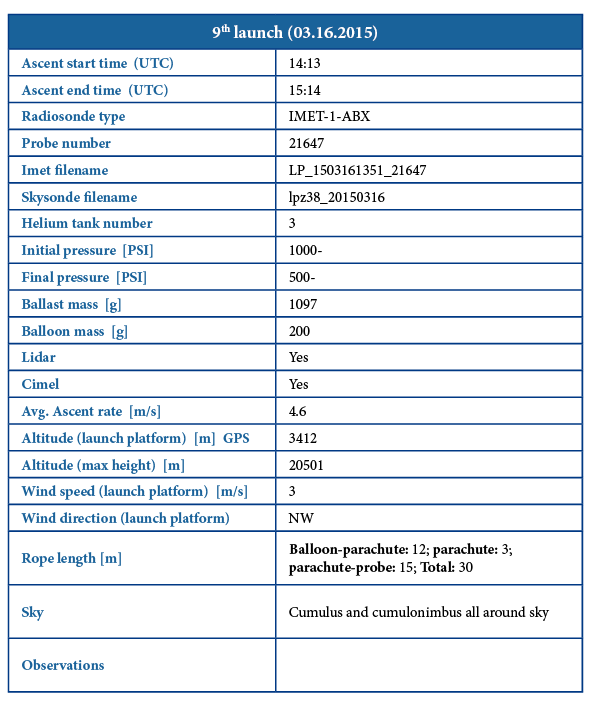

Metadata

The principal parameters of launch preparation and flight are shown in the table below.
Metadata_9th_launch
