Radiosonde launches‎ > ‎

07th Launch (03.03.2015)

posted May 28, 2015, 8:13 AM by Manuel Roca   [ updated Jun 3, 2015, 2:05 PM]

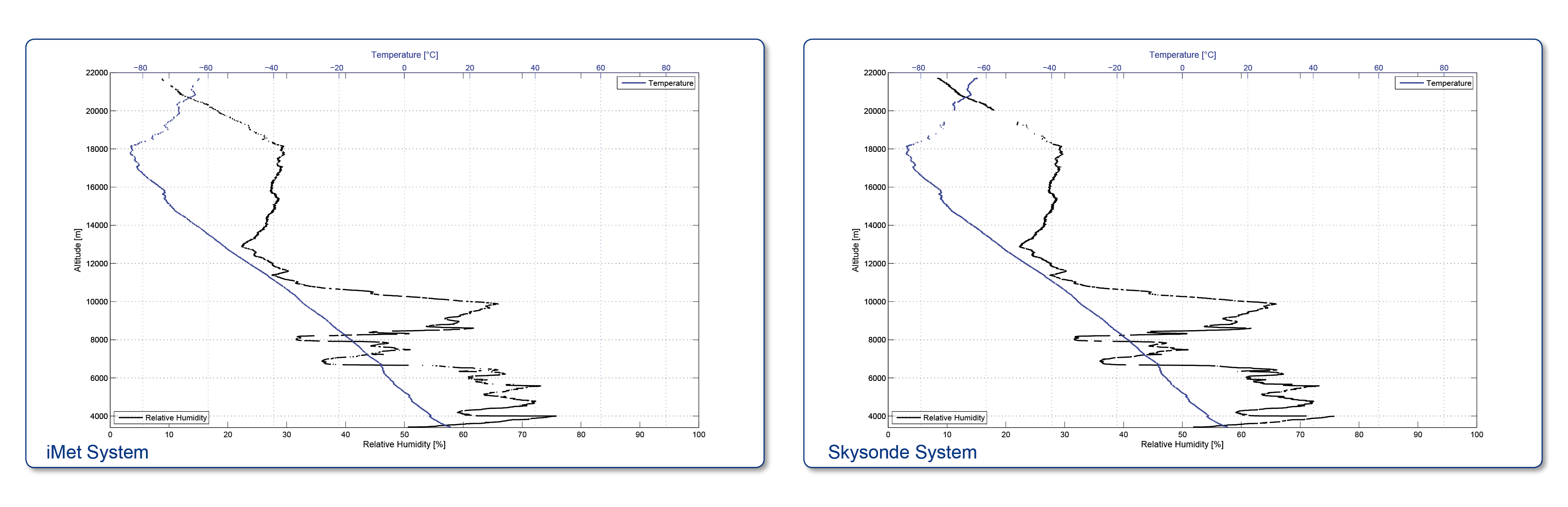

Relative Humidity & Temperature

Notice the presence of multiple cloud layers at all RH profile. Observe the thick cirrostratus layer, it also can be observed in the photo gallery.
TRH_7th_launch
(Click on the figures to enlarge)

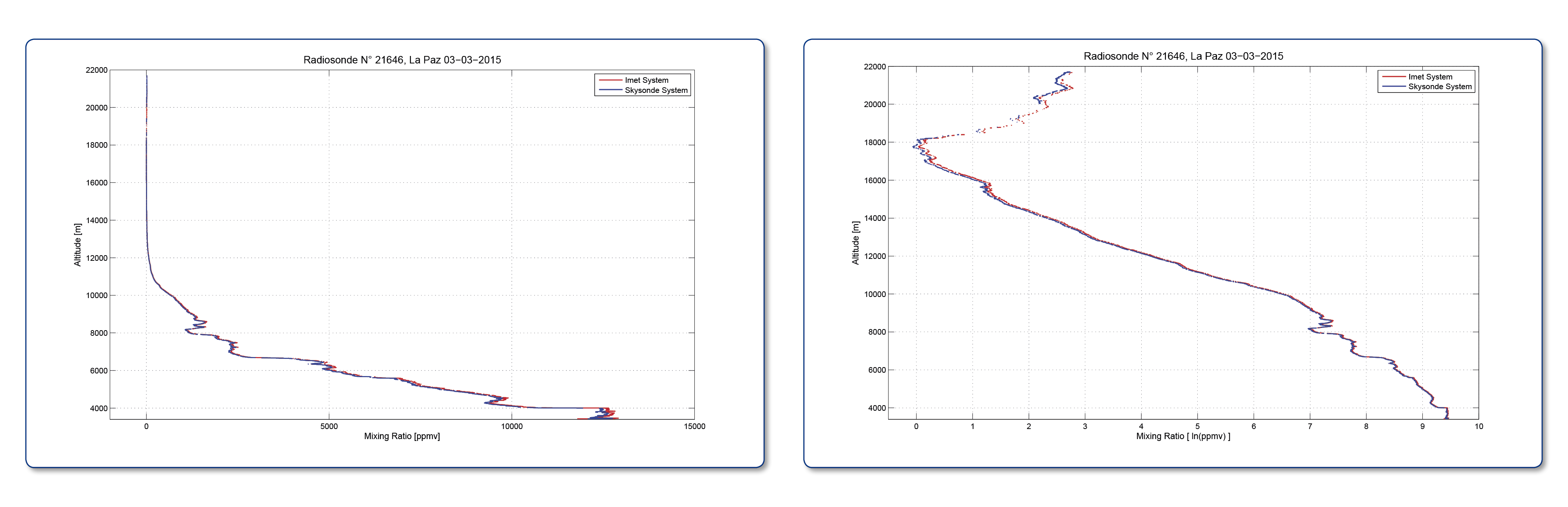

Water Vapor

The mixing ratio profile shows the same cloud layers than RH profile. It is interesting to remark that cirrostratus layer is divided in two sublayers.
Xppmv_7th_launch
(Click on the figures to enlarge)

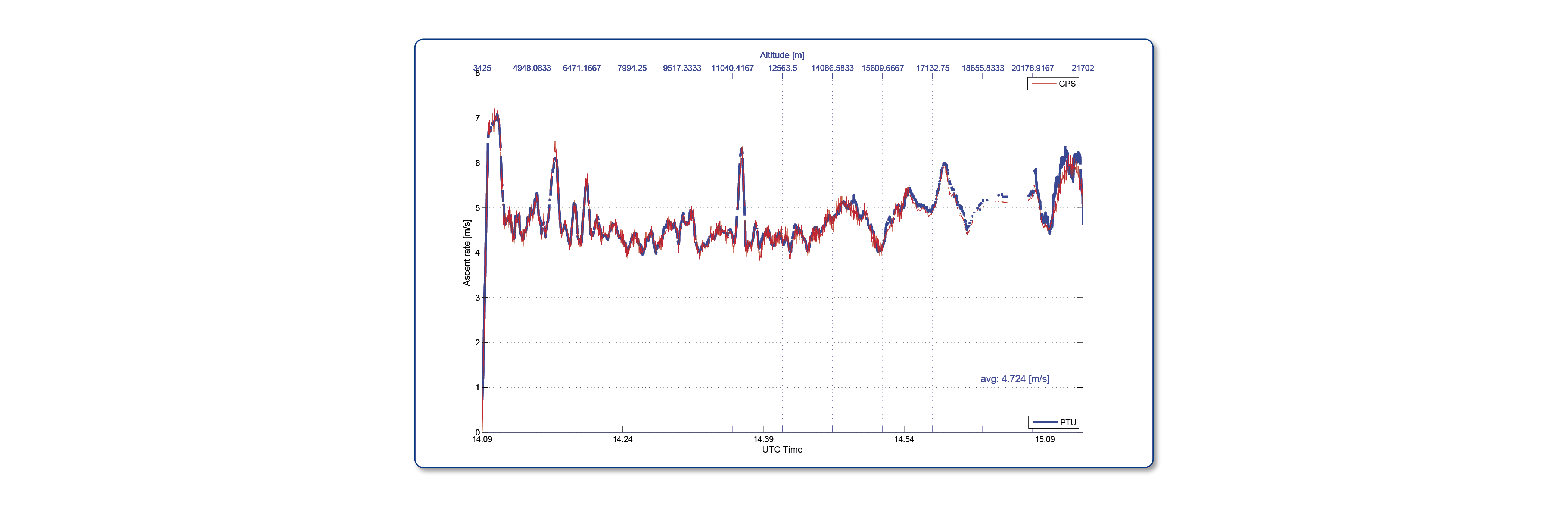

Ascent rate

In this case there were not many wind bursts to increase quickly the radiosonde ascent rate (its average was 4.7m/s).
Ascent_rate_7th_launch
(Click on the figure to enlarge)

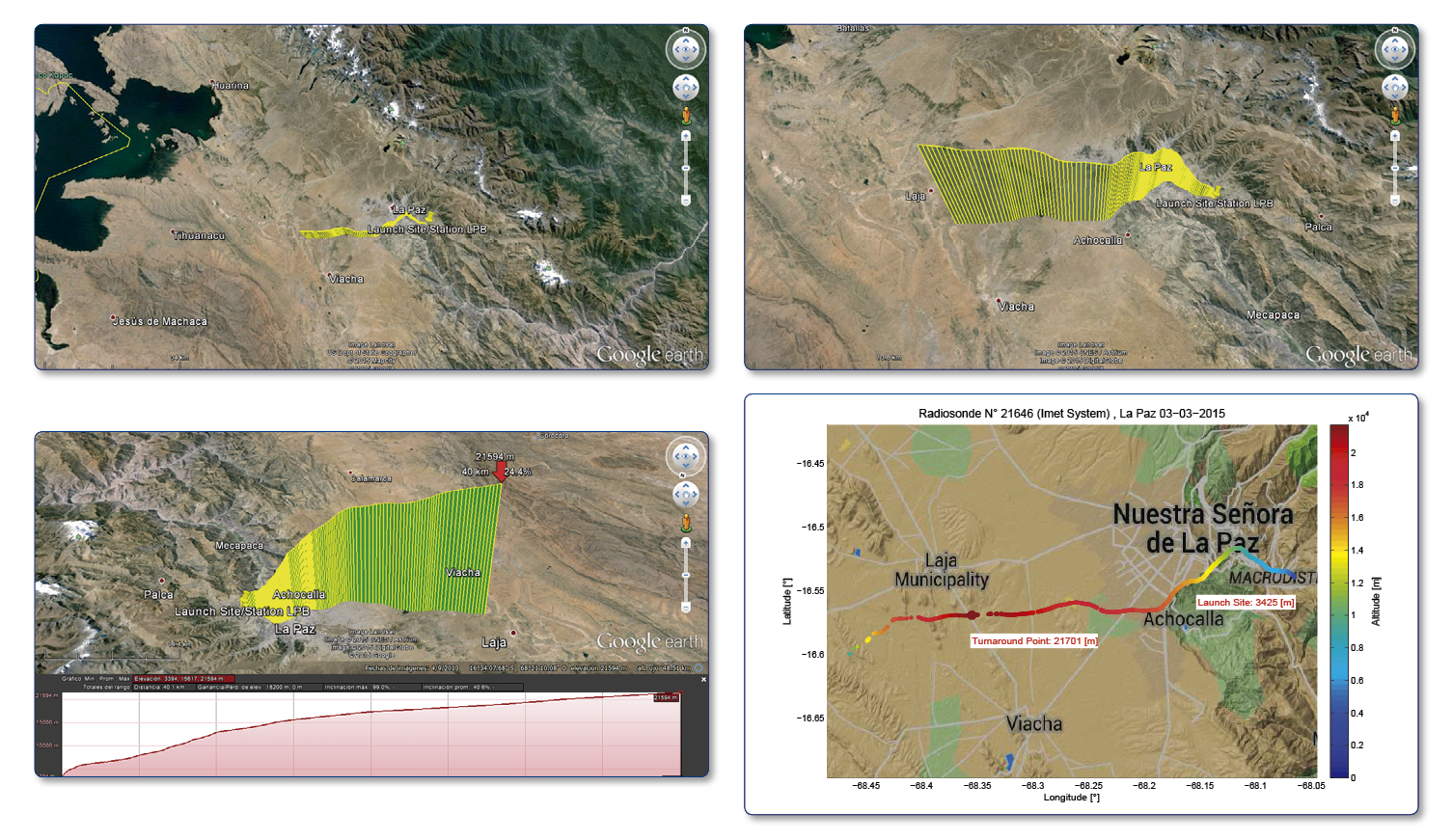

Balloon trajectory

The trajectory was the expected (westwards as is usual in this season).
Trajectory_7th_launch
(Click on the figures to enlarge)

Metadata

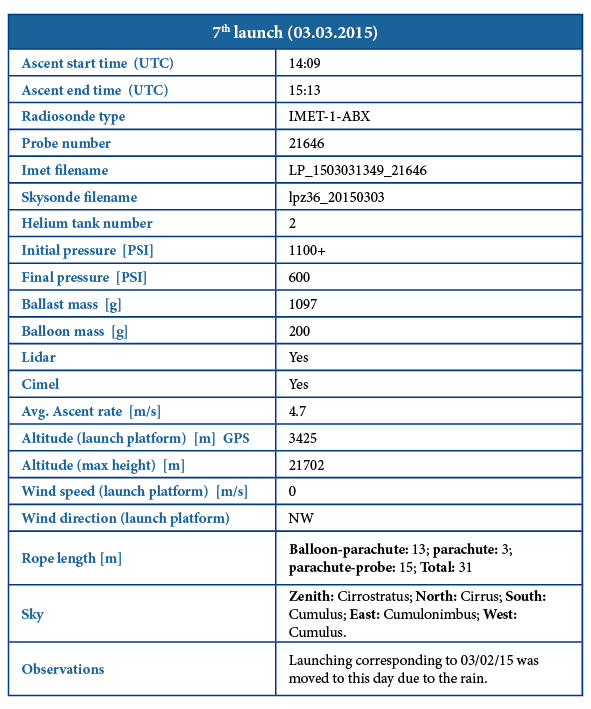

The principal parameters of launch preparation and flight are shown in the table below.
Metadata_7th_launch
