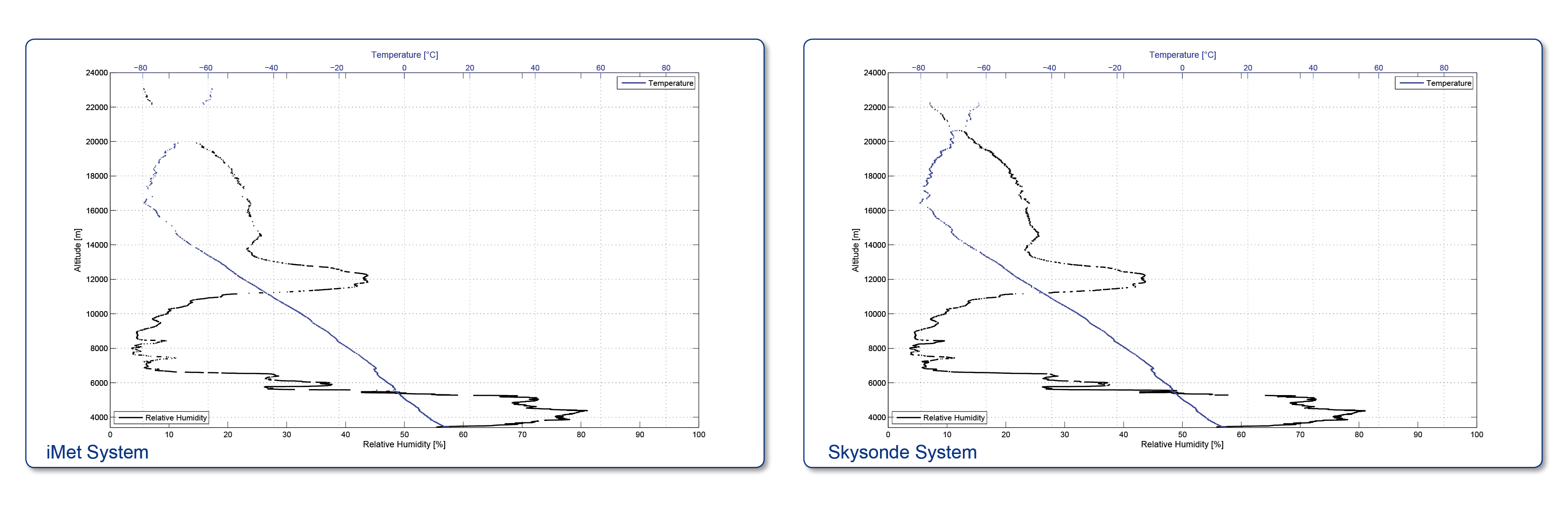

Relative Humidity & Temperature
Notice the low RH values between 7 and 11 km before to enter to a thick cirrus layer. The relative humidity at tropopause level is higher than expected, it suggests a saturation of the humidity sensor.
(Click on the figures to enlarge)

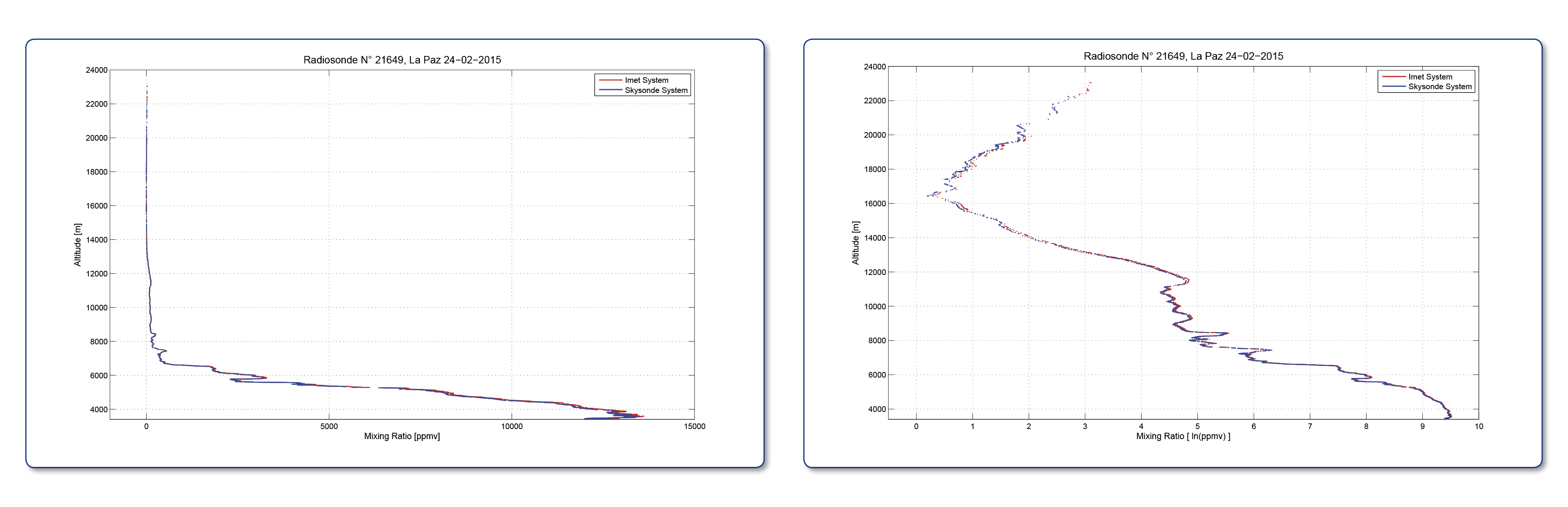

Water Vapor
In contrast to RH profile, the mixing ratio profile shows the real water vapor amount through the entire altitude profile. An evidence of it is the lowest value of water vapor in the tropopause.
Also it might be seen the cirrus laye
r.
(Click on the figures to enlarge)

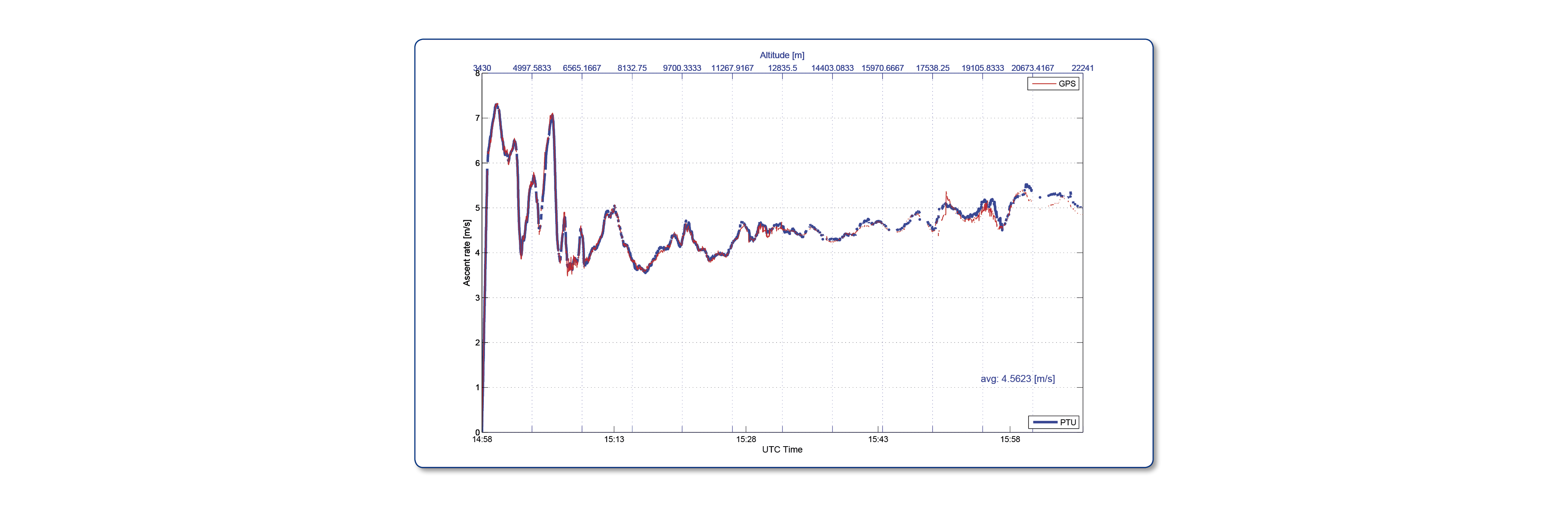

Ascent rate
Notice the presence of wind bursts until 7 km. The average ascent rate was 4.56 m/s, it is enough to take measurements correctly.
(Click on the figure to enlarge)

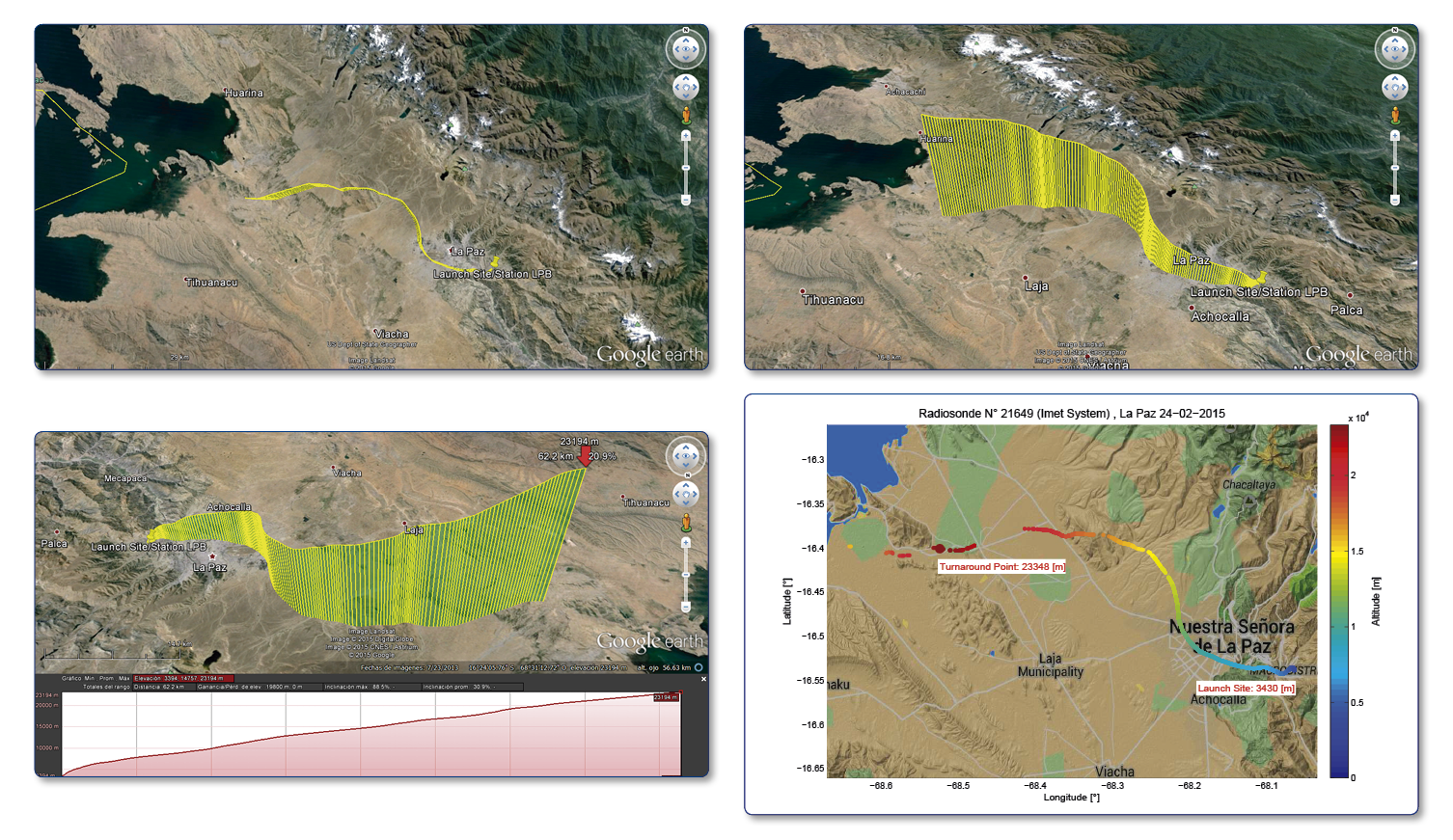

Balloon trajectory
As most previous radiosoundings the trajectory was westwards.Â
This trajectory shows some gaps near to the maximum altitude probably due to a radio signal interference by cloud layers (cumulonimbus to the west).
(Click on the figures to enlarge)

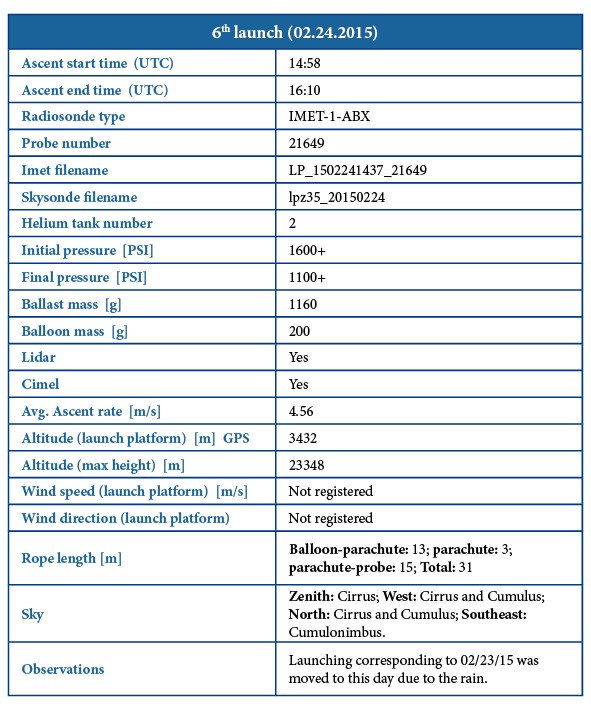

The principal parameters of launch preparation and flight are shown in the table below.
|
