04th Launch (02.09.2015)

posted Apr 23, 2015, 9:17 AM by Manuel Roca   [ updated Jun 3, 2015, 10:49 AM]

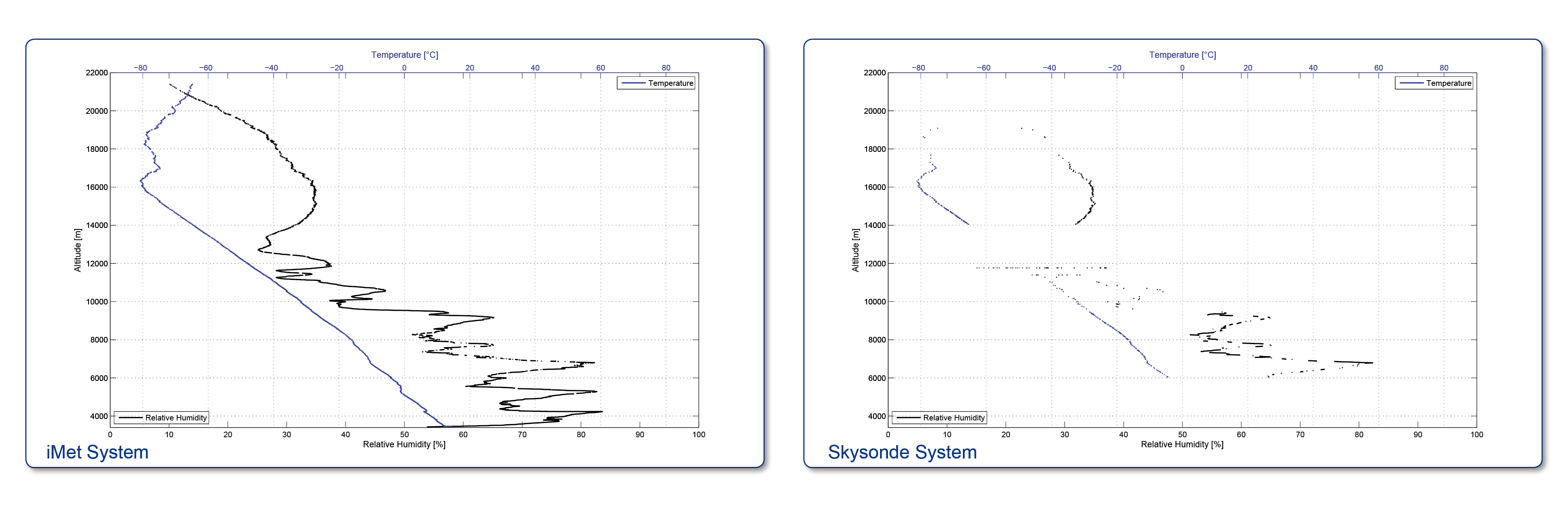

Relative Humidity & Temperature

The RH profile shows the presence of many cloud layers from 5 to 12 km. Signal reception problems in Skysonde system continues, worse regarding to previous launches.
TRH_4th_launch
(Click on the figures to enlarge)

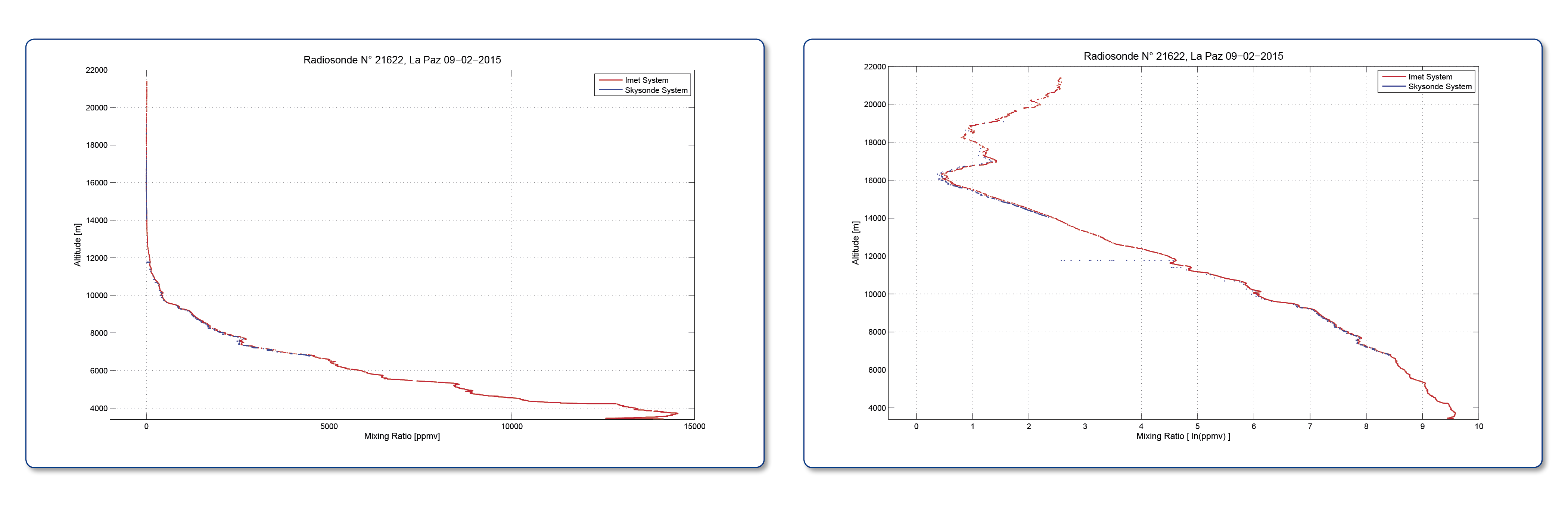

Water Vapor

In contrast to RH profile, the mixing ratio profile does not show high values at these altitudes, except in the lowest layer where the amount of water vapor is higher.
Xppmv_4th_launch
(Click on the figures to enlarge)

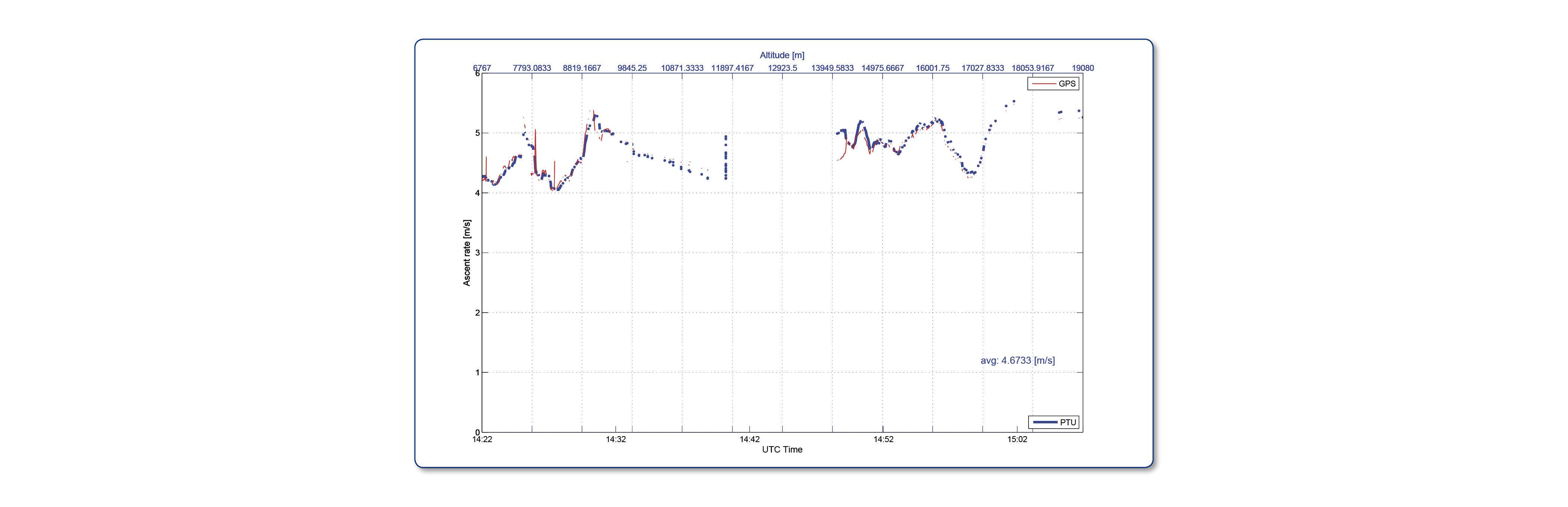

Ascent rate

The ascent rate was enough (4.7 m/s) .
Ascent_rate_4th_launch
(Click on the figure to enlarge)

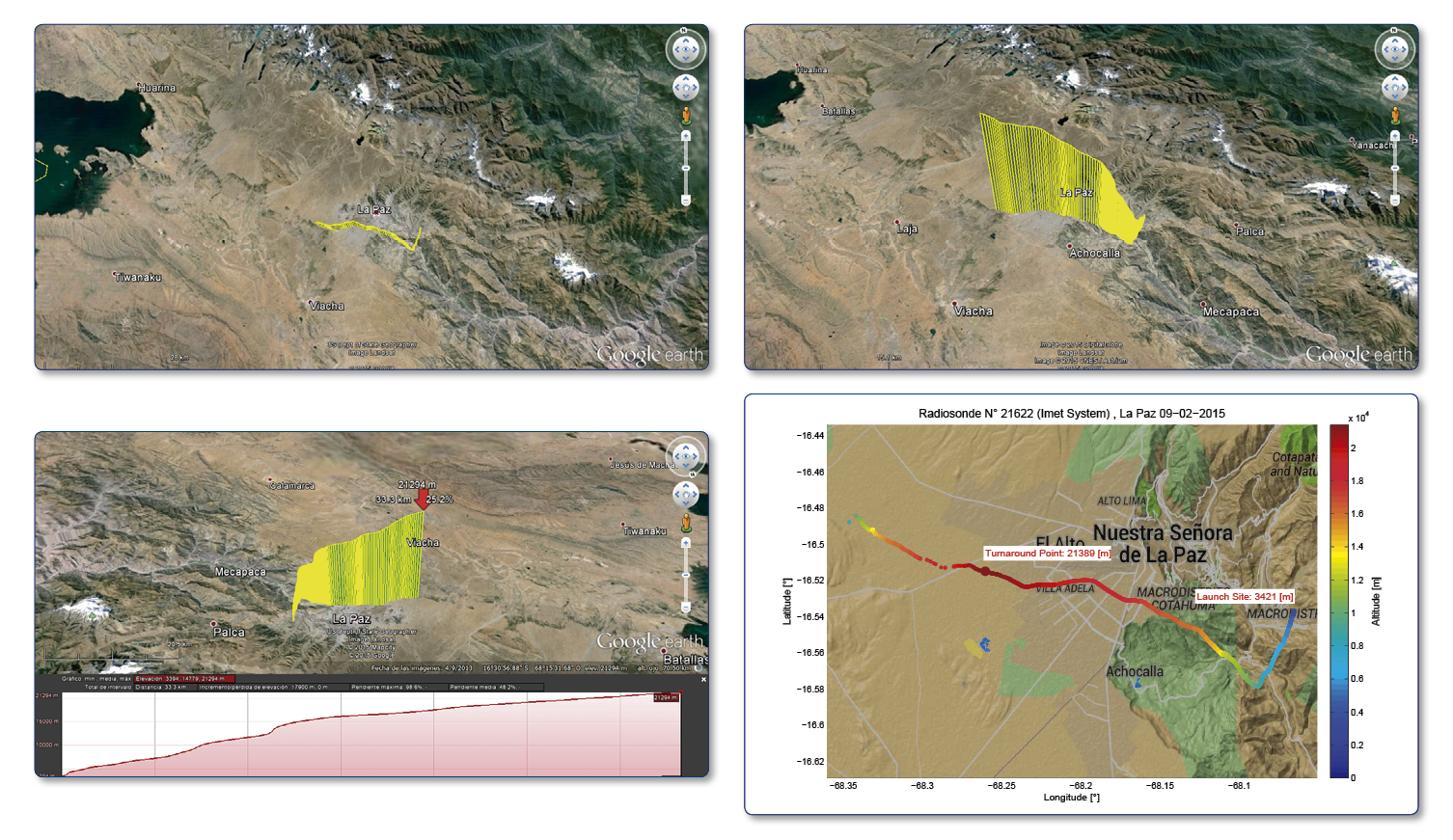

Balloon trajectory

The general behavior was the expected (Westwards), although at the beginning the balloon direction was Southwestwards.
Trajectory_4th_launch

(Click on the figures to enlarge)

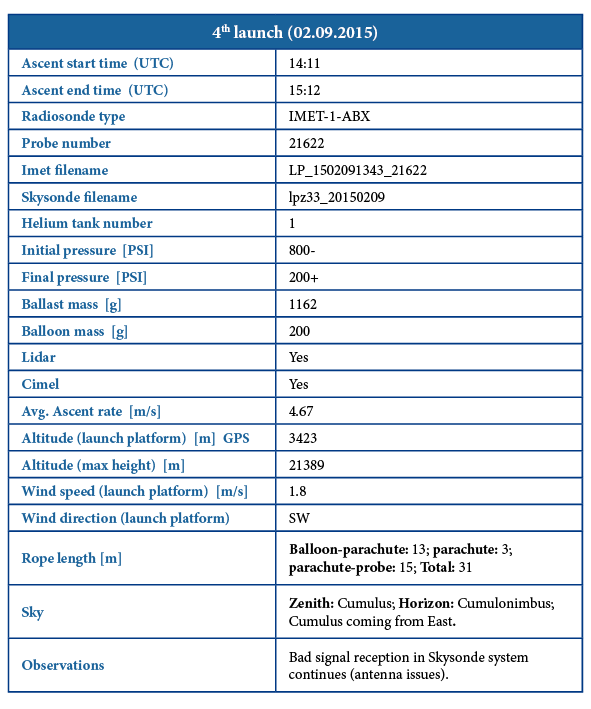

Metadata

The principal parameters of launch preparation and flight are shown in the table below.
Metadata_4th_launch
