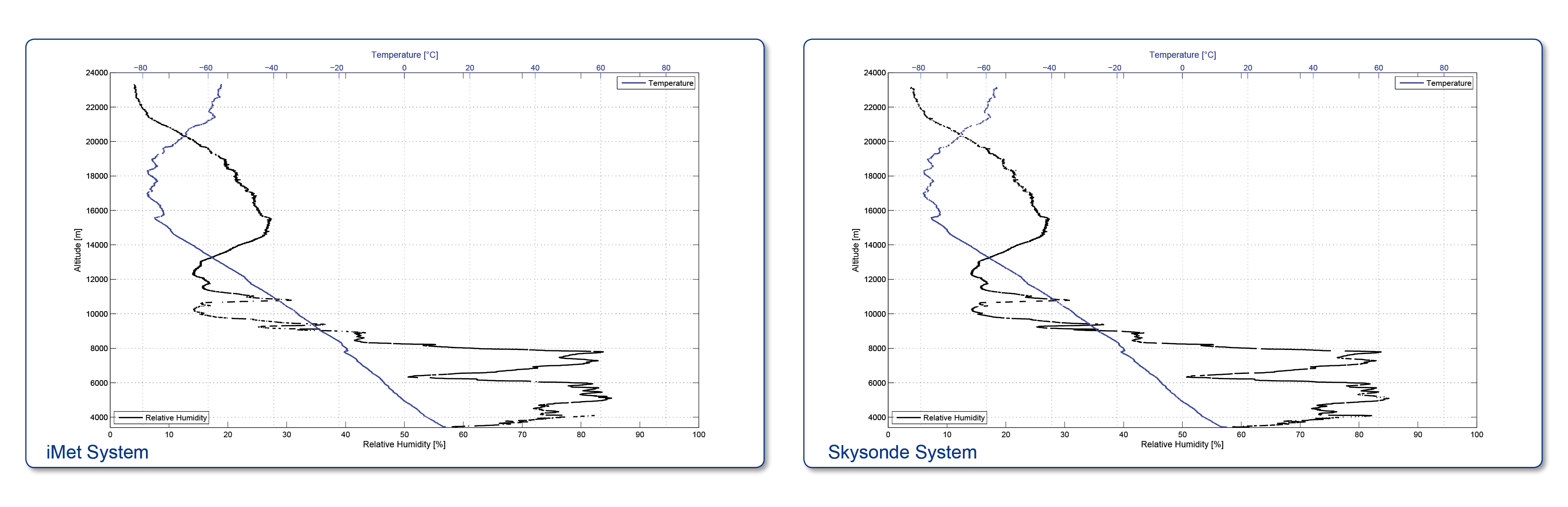

Relative Humidity & Temperature
Observe the clear stratification among low, middle and high clouds.The low clouds have a high  level of relative humidity in contrast to middle clouds.
(Click on the figures to enlarge)

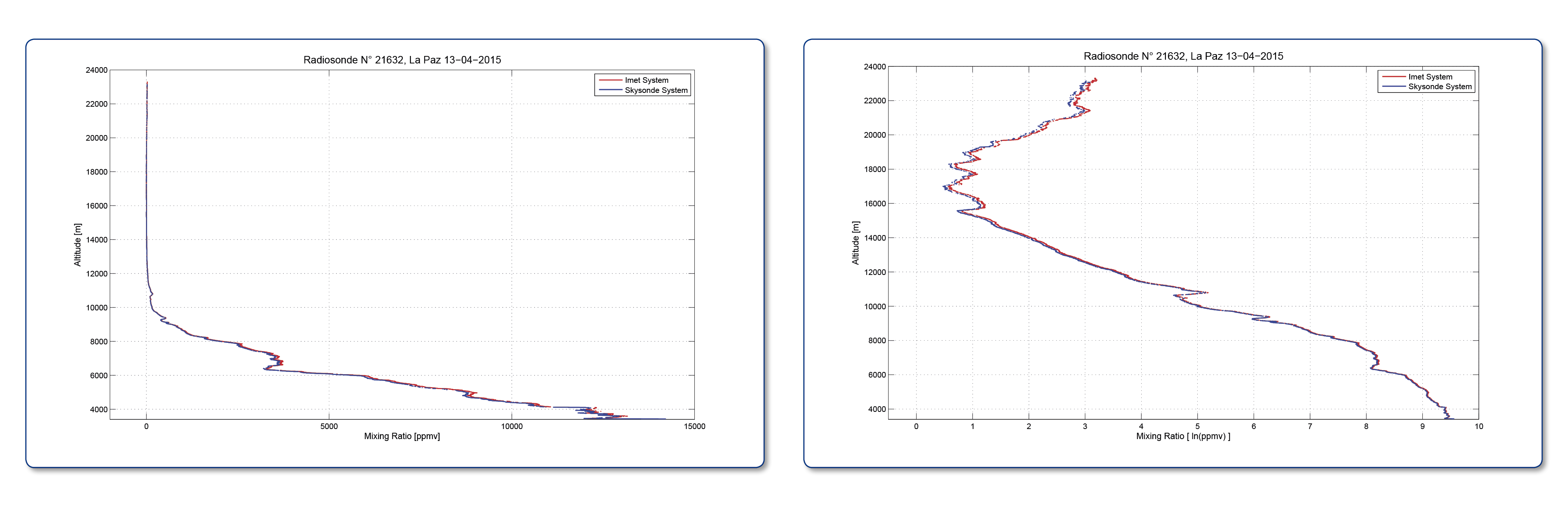

Water Vapor
The mixing ratio profile shows a high amount of humidity of the low clouds. Observe that middle clouds layer has a considerable width.
(Click on the figures to enlarge)

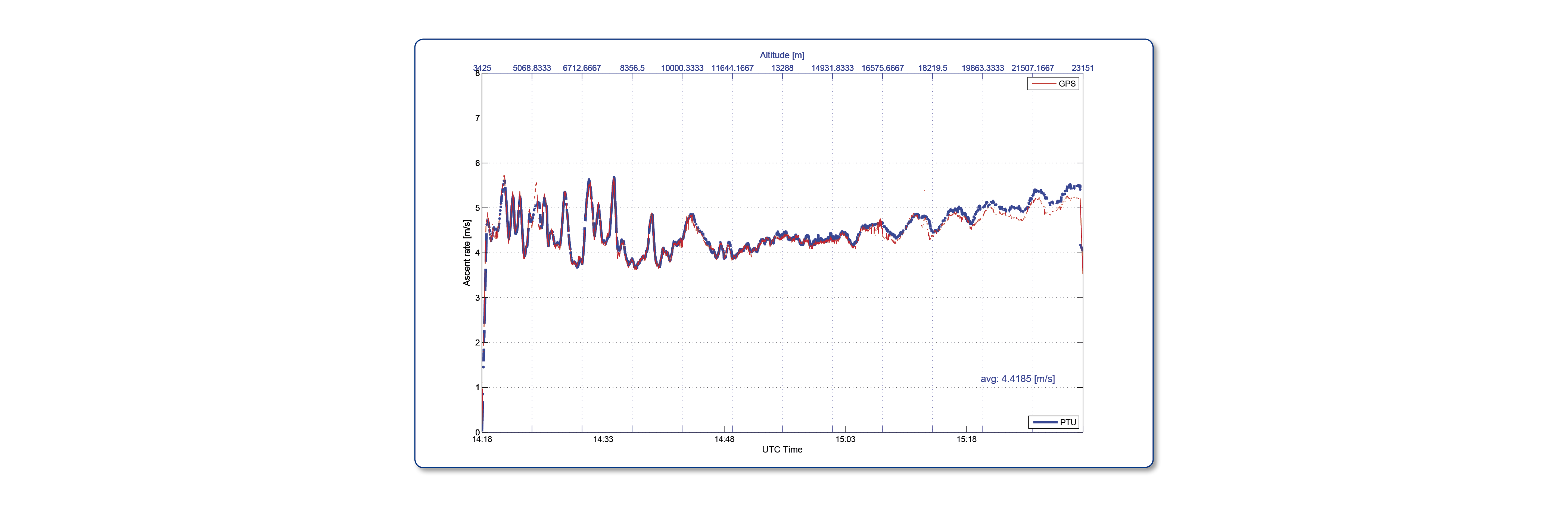

Ascent rate
In this case the balloon was filled at 500 bar, for that, the ascent rate was reduced to 4.4 m/s. As usual, there was high variability in the ascent rate until 8 km.
(Click on the figure to enlarge)

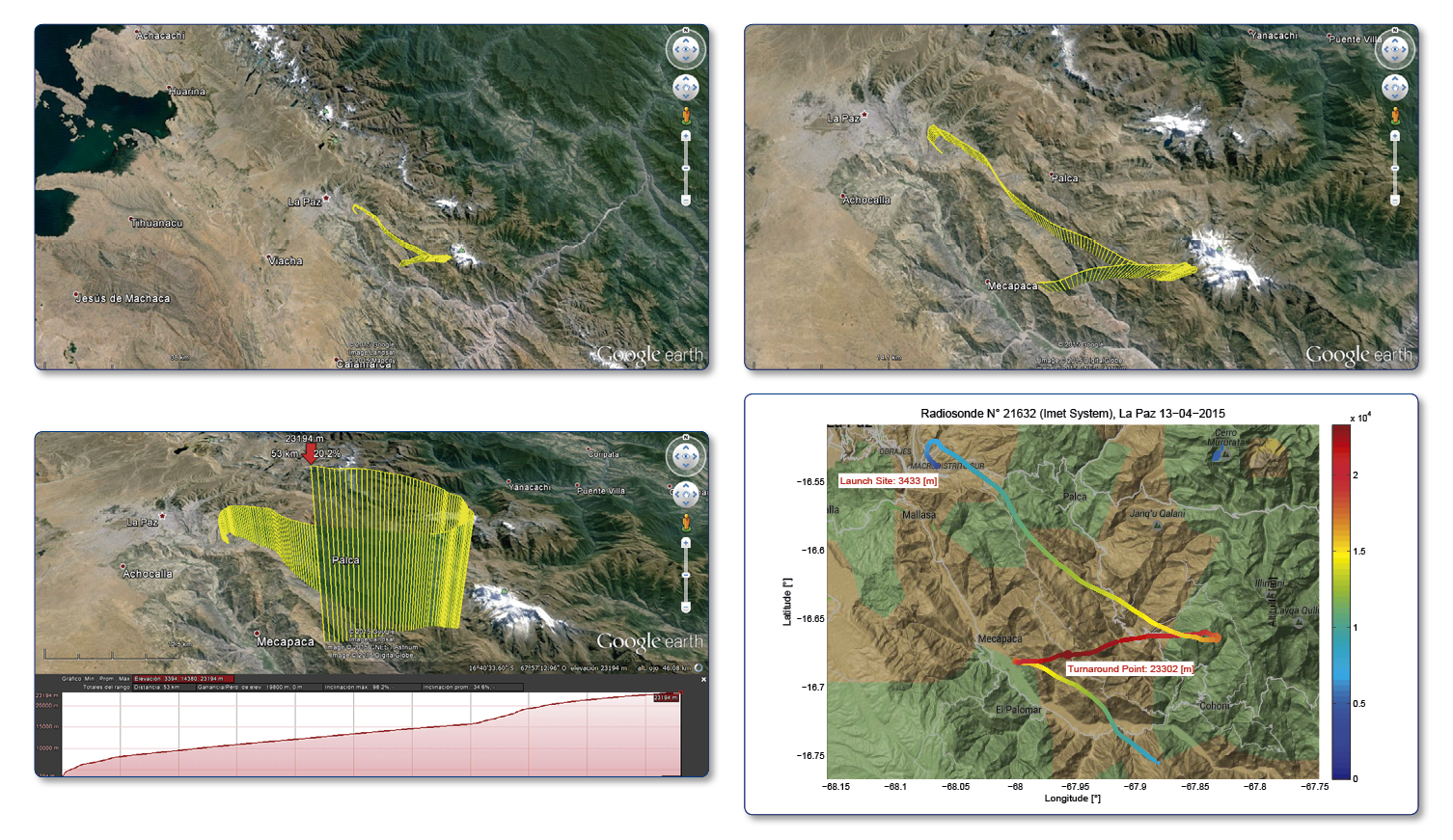

Balloon trajectory
For the third consecutive time, the wind below the tropopause was southeastward and above it was westward, like a shear kind.
(Click on the figures to enlarge)

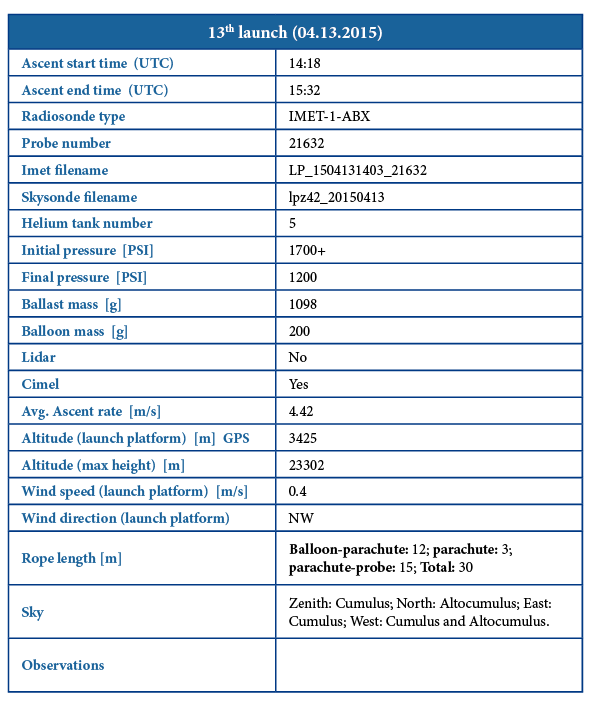

The principal parameters of launch preparation and flight are shown in the table below.
|
