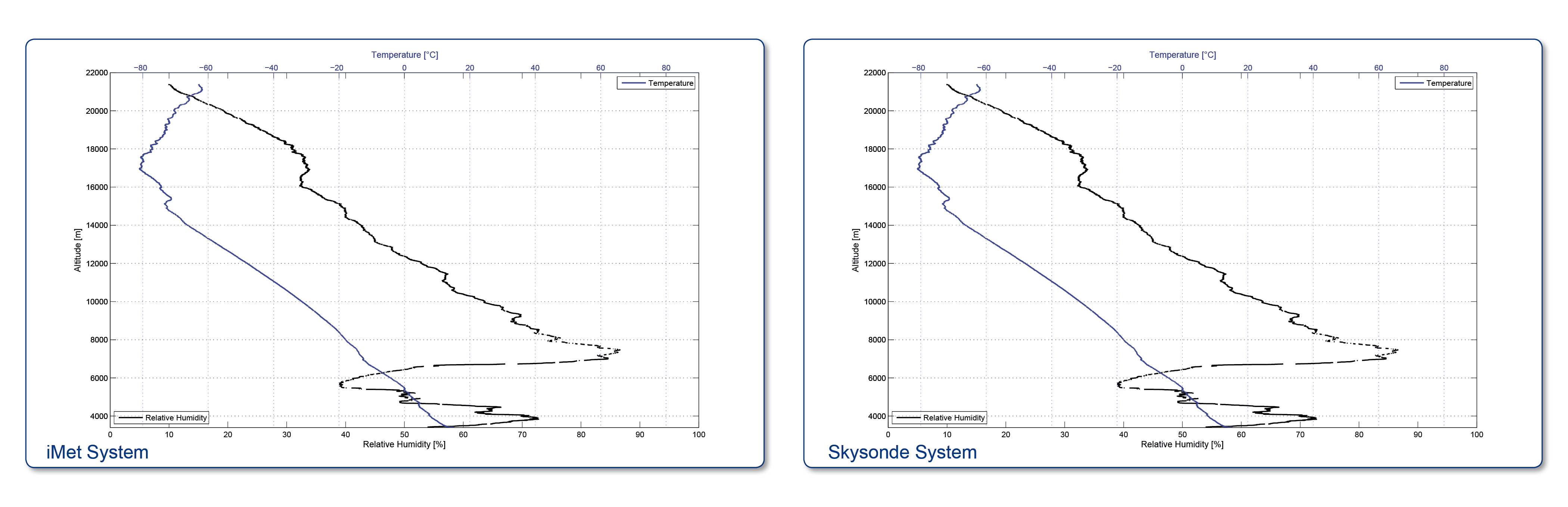

Relative Humidity & Temperature
As in previous launch, the sky was whole covered by a middle altitude cloud layer (stratonimbus) between 7 and 8 km. It can be seen in RH profile.
(Click on the figures to enlarge)

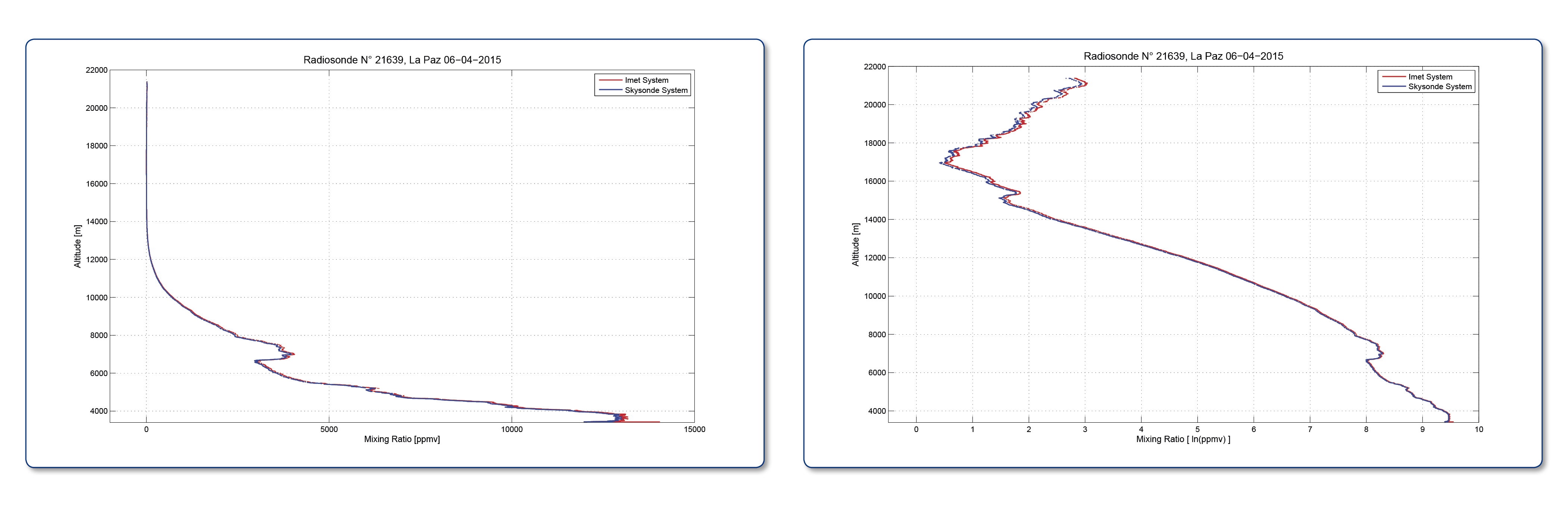

Water Vapor
In this profile it can be seen that low clouds contain more water vapor than the middle clouds. Also, in log scale can be seen the presence of a cirrus layer.
(Click on the figures to enlarge)

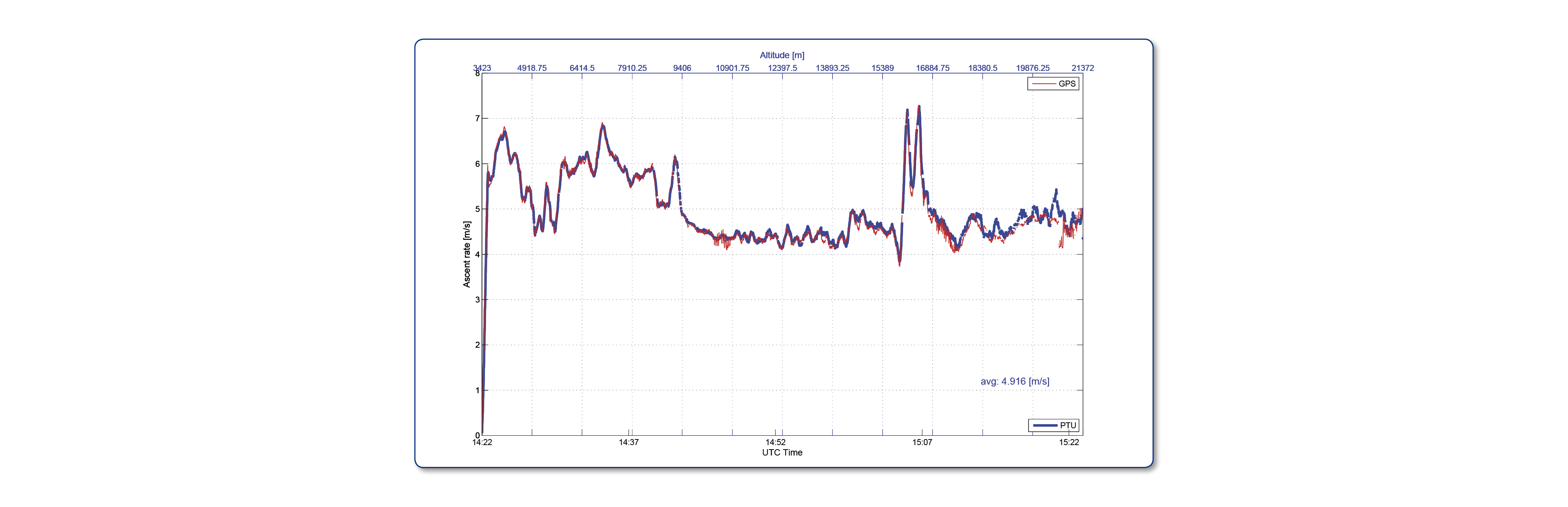

Ascent rate
In this case, the balloon quickly ascended (4.9 m/s) because it was filled at 600 bars. Notice the presence of wind bursts before tropopause (16 km).
(Click on the figure to enlarge)

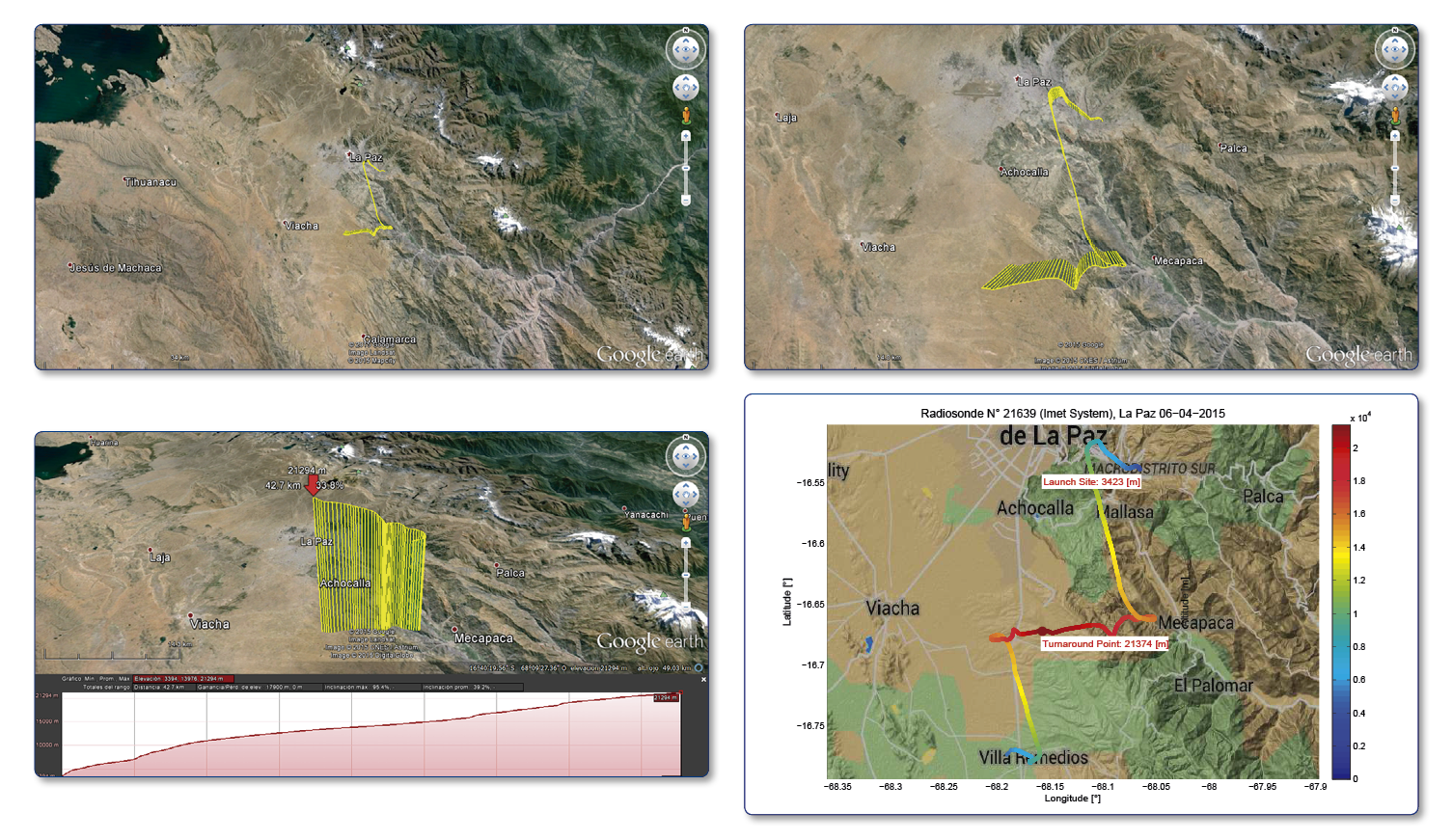

Balloon trajectory
As the last radiosounding, the balloon followed a southeastward direction below the tropopause and a westward direction above the tropopause.
(Click on the figures to enlarge)

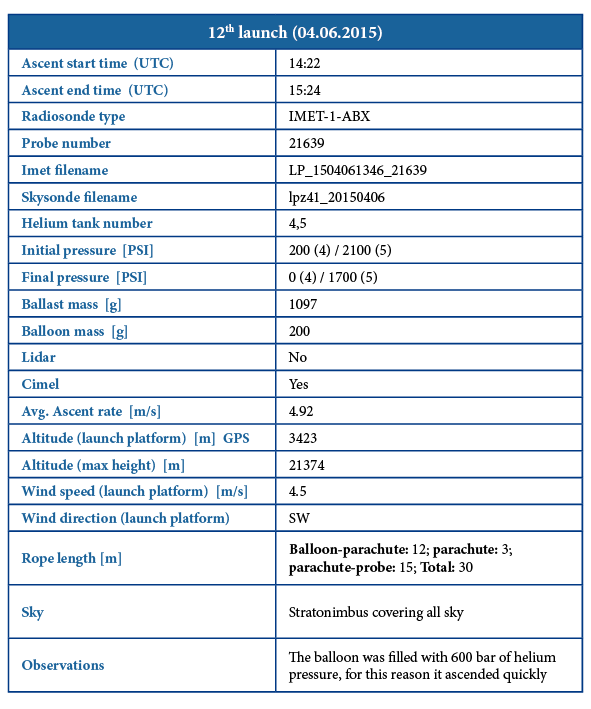

The principal parameters of launch preparation and flight are shown in the table below.
|
