11th Launch (03.30.2015)

posted Jun 1, 2015, 12:50 PM by Manuel Roca   [ updated Jun 1, 2015, 1:35 PM]

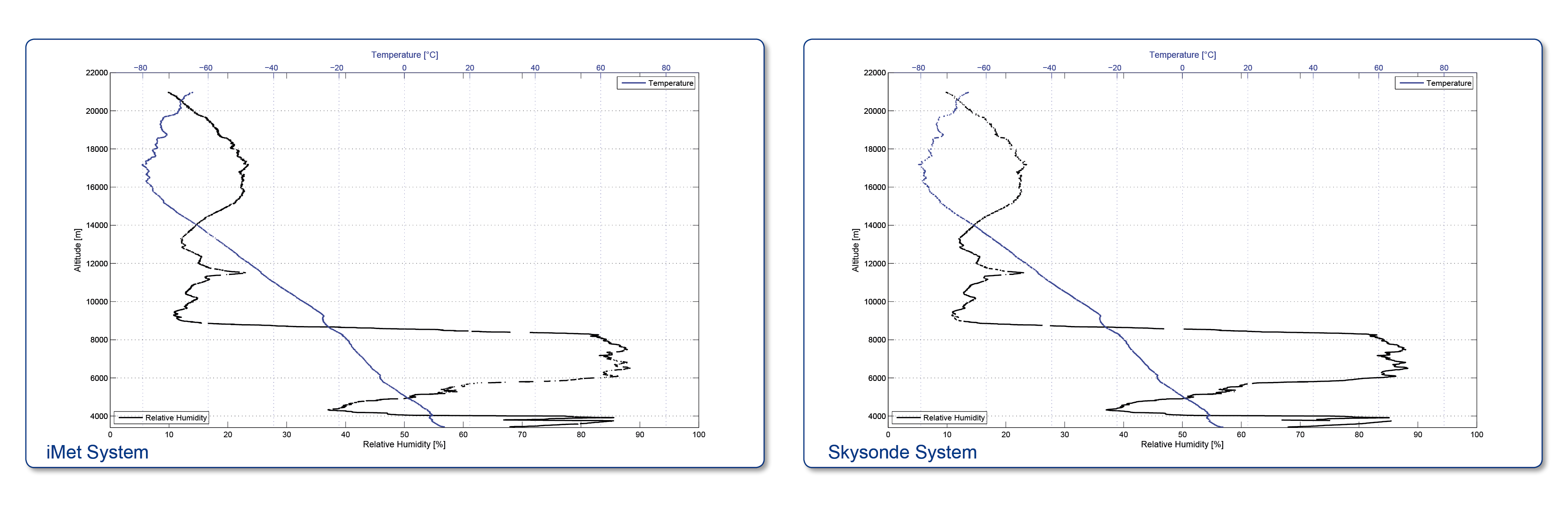

Relative Humidity & Temperature

Notice the great presence of a middle cloud layer (Stratonimbus). In minor proportion we can observe the presence of low and high clouds. Observe that stratonimbus has a RH value higher than low clouds.
TRH_11th_launch
(Click on the figures to enlarge)

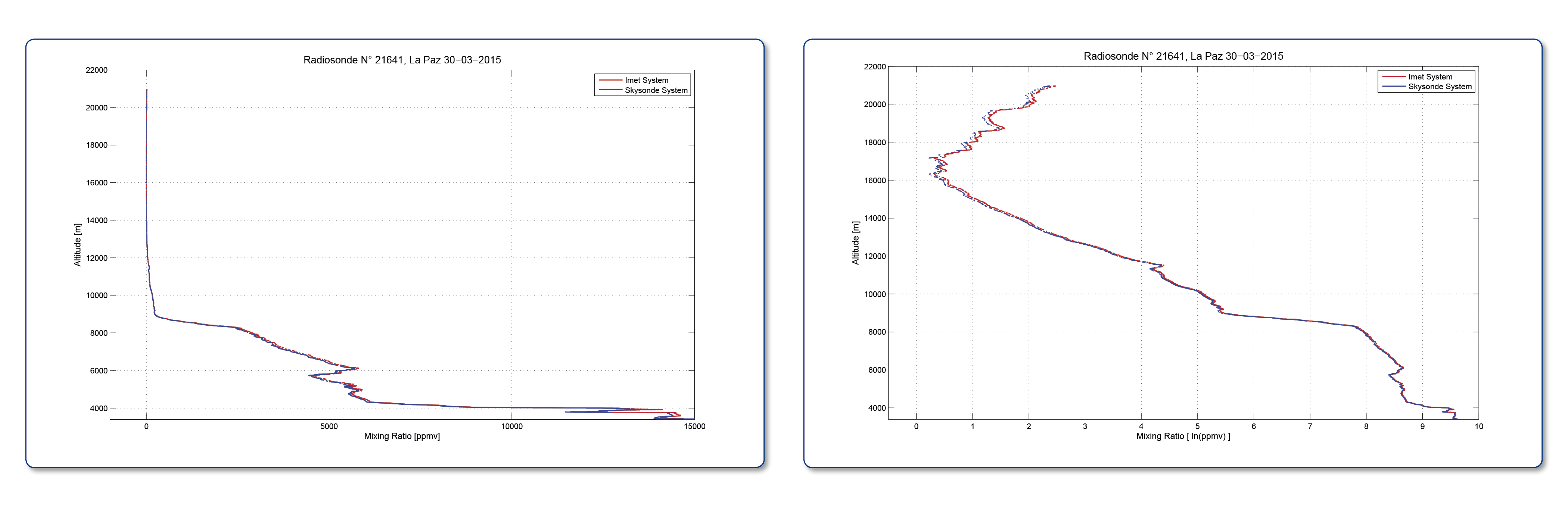

Water Vapor

Even though the middle clouds have a higher RH value than low clouds, they have a lower amount of water vapor. In the same way, we can observe on the linear plot that high clouds (11 km) are almost imperceptibles regarding to amount of water vapor.

Xppmv_11th_launch

(Click on the figures to enlarge)

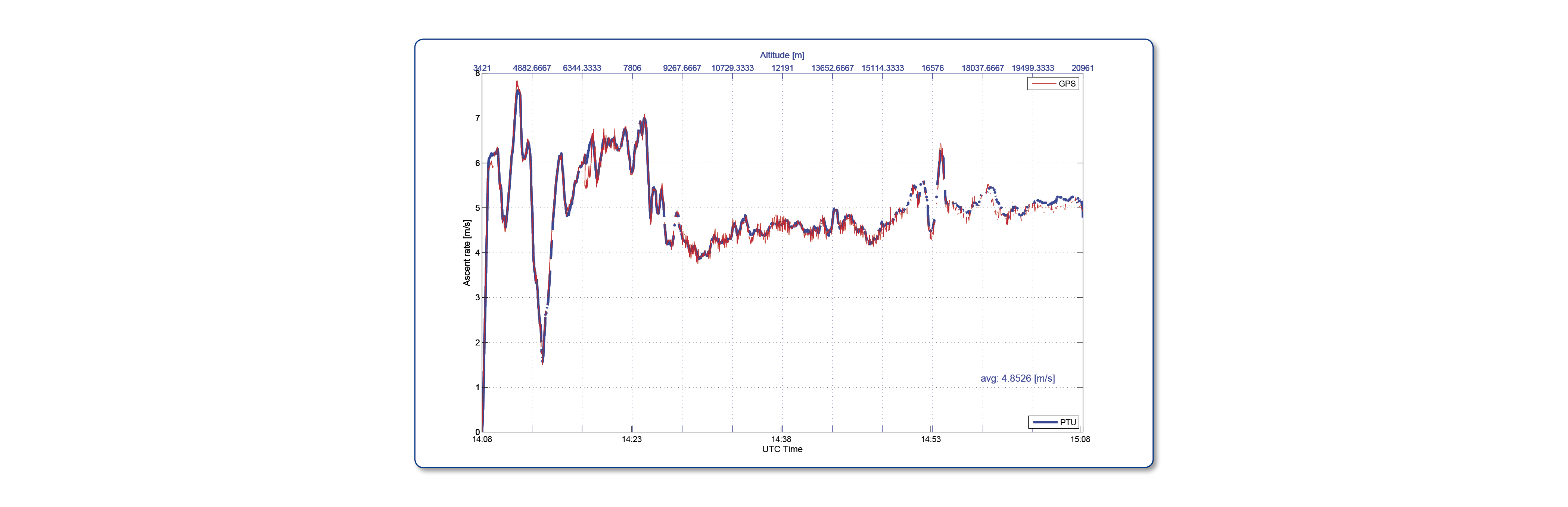

Ascent rate

There were several wind bursts until 8 km (asl) .
Ascent_rate_11th_launch
(Click on the figure to enlarge)

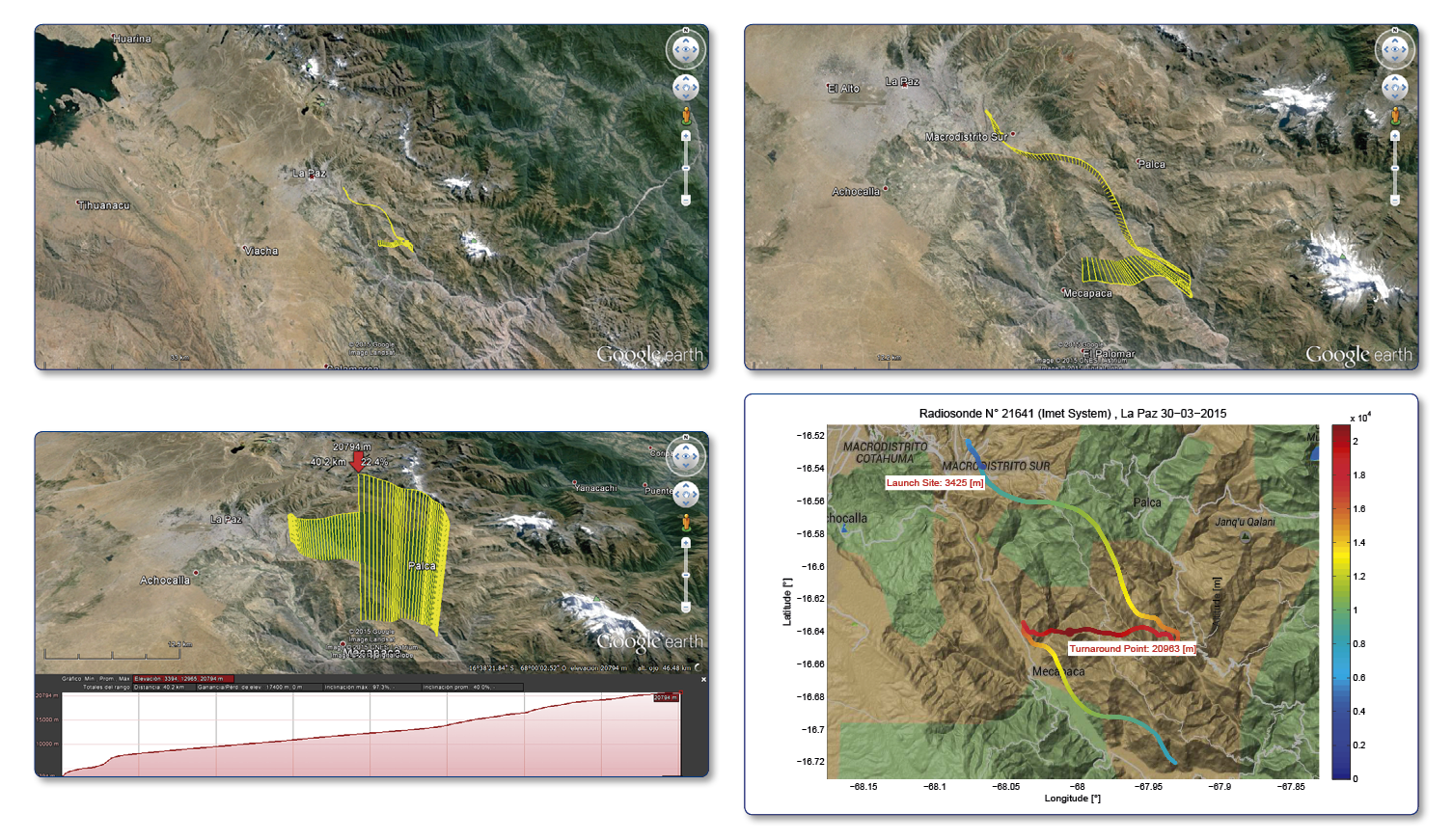

Balloon trajectory

Observe that the direction below the tropopause (ascent and descent) is southeastward, while above the tropopause is westward.
Trajectory_11th_launch
(Click on the figures to enlarge)

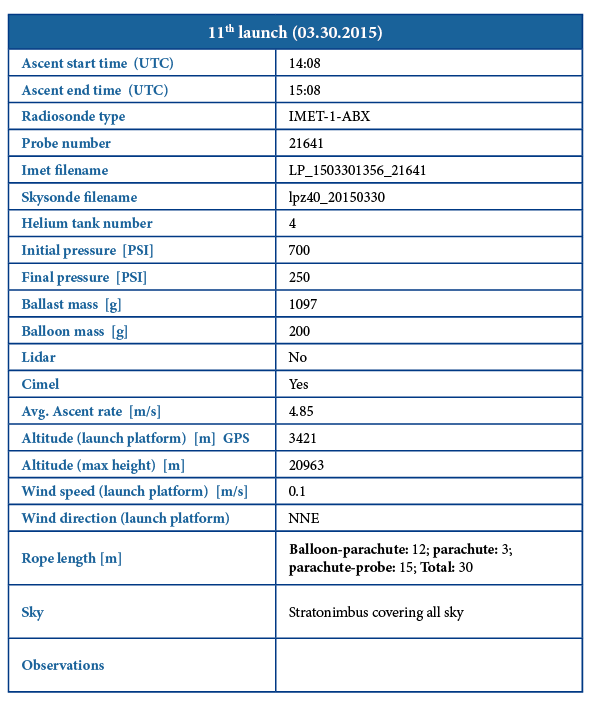

Metadata

The principal parameters of launch preparation and flight are shown in the table below.
Metadata_11th_launch
